High-performance steel wire braided high-pressure oil pipe: a solid backing for equipment

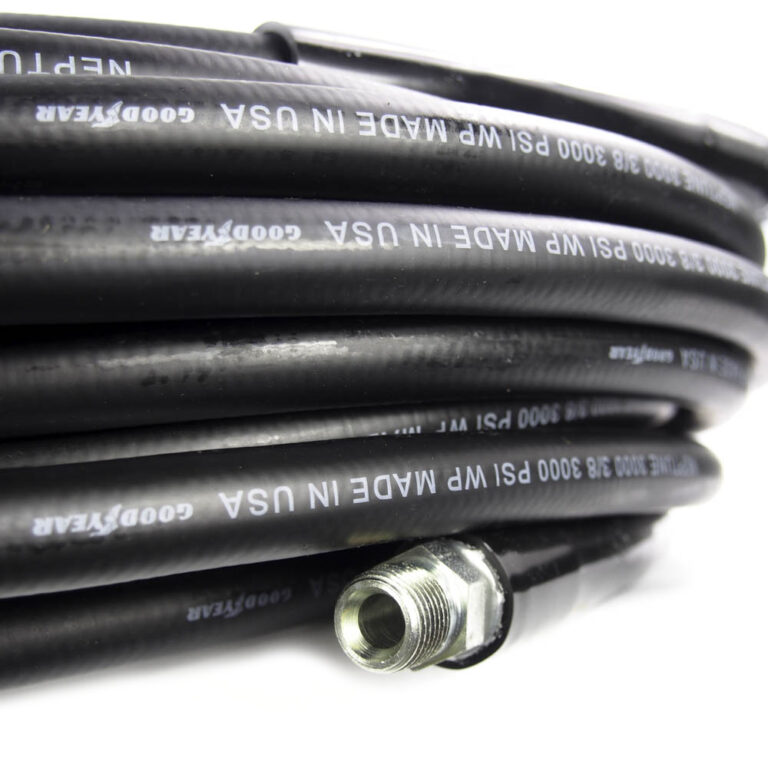

Steel wire braided high-pressure oil pipes consist of three parts: inner oil pipe, steel wire braided layer and outer sheath. The inner layer material is usually made of synthetic rubber, which has excellent elasticity and oil resistance, and can ensure the unimpeded flow of the flowing medium. The middle steel wire braided layer is the key part of the entire oil pipe. It uses high-strength steel wire to wrap around the inner pipe through a precise braiding process, which greatly improves the pressure resistance of the oil pipe. The outer sheath is made of wear-resistant and weather-resistant synthetic rubber to protect the inner pipe and braided layer from the invasion of the external environment.



The braiding angle and density of the steel wire directly affect the pressure resistance and bending radius of the oil pipe. Generally speaking, the denser the braiding layer, the greater the pressure the oil pipe can withstand. The design of the braiding angle needs to strike a balance between pressure bearing capacity and flexibility to ensure that the oil pipe can withstand high pressure and operate flexibly during use.





1. Excellent pressure resistance



Thanks to the support of high-strength steel wire braiding layer, steel wire braided high-pressure oil pipe can withstand extremely high working pressure. This makes it an indispensable part of modern industrial equipment and can cope with various needs from heavy machinery to precision equipment.



2. Excellent wear resistance



The selection of outer sheath material enables steel wire braided high-pressure oil pipe to be used for a long time without damage in various harsh environments. This is especially important for mechanical equipment that is often in a state of friction and vibration.



3. Excellent weather resistance



The oil pipe has good anti-aging performance and can withstand long-term exposure to harsh environments such as sunlight, rain, strong winds and high temperatures. This feature ensures that it can be durable even in harsh outdoor conditions.



4. Wide applicability



Wire braided high-pressure oil pipe is not only suitable for ordinary oil pressure delivery systems, but also for the delivery of special chemicals, gases and water. At the same time, it can adapt to different joints, facilitate docking and replacement, and greatly simplify the installation and maintenance process of the equipment.





Including but not limited to the following aspects:



Engineering machinery



In engineering machinery, high-pressure oil pipes bear the heavy responsibility of hydraulic system power transmission. Excavators, bulldozers, loaders and other equipment achieve stable power output and transmission through its reliable operation.



Petrochemical



In the petrochemical industry, the transportation of special media requires reliable conveying devices. Wire braided high-pressure oil pipes undertake the material transportation tasks of key process flows with their excellent material properties.



Aerospace



The aerospace field has extremely high requirements for the pressure and temperature resistance of oil pipes. Wire braided high-pressure oil pipes have become an indispensable and important component of hydraulic systems with their excellent pressure resistance and stability.



Marine Engineering



In marine engineering, equipment needs to withstand the corrosion of salt spray and seawater, and maintain efficient operation in the floating marine environment. Wire braided high-pressure oil pipes can obviously cope with these challenges.



Precautions for purchasing wire braided high-pressure oil pipes



Pressure level



Different working environments have different requirements for the pressure level of oil pipes. When purchasing, you need to choose oil pipes that can withstand the maximum working pressure according to the actual application.



Flexibility requirements



If the oil pipe needs to be frequently moved or fixed in a deformable part, it is more appropriate to choose a model with good flexibility.



In summary, wire braided high-pressure oil pipes, as an indispensable transmission tool in modern industry, ensure the stable operation of various equipment with their super pressure resistance, wear resistance and adaptability. Accurately understanding its characteristics and advantages can help companies better choose products that suit their needs, thereby improving production efficiency and equipment life. When purchasing, in addition to paying attention to the basic performance of the oil pipe, it is also necessary to combine the actual application scenario and carefully select the appropriate specifications and models to ensure foolproof industrial operations. Whether in highly complex engineering machinery or in the demanding petrochemical industry, wire braided high-pressure oil pipes are undoubtedly a solid backing for equipment operation.
